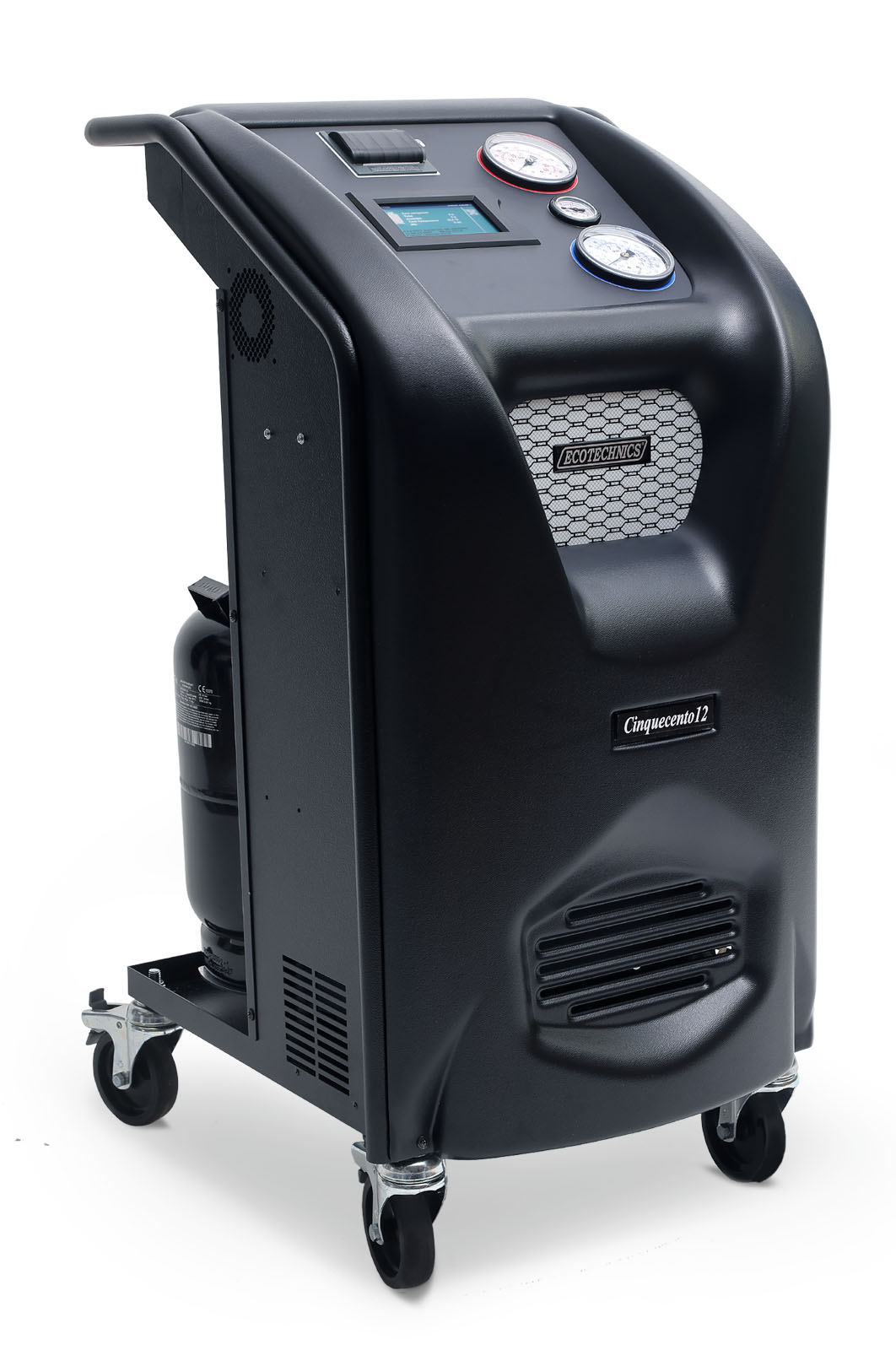

Cinquecento12
Compact, economic, modern
Cinquecento12 is the model designed for R134a or HFO refrigerants. The solid metal structure, the choice of known and tested components and the implementation of new technological standards make this station the most performing entry level on the global market.
Fully automatic A/C charging station for recovery, recycling and charging for R134a or HFO1234yf
• Configuration of the refrigerant during activation with the corresponding R134a or HFO kit
• Wide 4.3” touch screen display for an easy, fast and intuitive navigation
• Energy-saving with 12-volt solenoid valve technology
• Optional Hybrid kit for the flushing of service hoses and internal circuits. Indispensable for the service on systems with an electric compressor.
• Oil management both with standard refillable containers and with hermetic cartridges.
• WIFI connection available on request
• Complete database also including commercial and agricultural vehicles
• Thermal printer: factory option
• Front panel available on request
FEATURES
Type of refrigerant | R134a or HFO1234yf |
Display | 4,3" colour touchscreen |
Service valves | Manual |
Thermal printer | Factory Option |
Hermetic and refillable containers for oil and dye | Not available |
Hermetic disposable containers for oil and dye | Option 1 |
Refillable standard containers for oil and dye | Standard 1 |
Hoses | 3 meters |
Data Base Car-Truck-Agri | Standard |
Refrigerant Configuration | Standard |
Hybrid function / electrically driven compressors | Option |
Pressure test forming gas / nitrogen | Not available |
Gas Identifier / Gas Analyser | Not available |
Connectivity WIFI | Option |
Flushing Kit | Not available |
Leak check in vacuum | Not available |
Non condensable gas purge | Not available |
Voltage | Not available |
Vacuum pump | Not available |
Sealed compressor | Not available |
Recovery speed | Not available |
Tank Scale resolution | Factory Option |
Oil scale resolution | Not available |
Working temperature range | Not available |
Filter system | Not available |
Refrigerant tank | Standard 1 |
Bottle heater | Not available |
Dimension / weight | cm 47 x 51 x 97, 54 kg |
Dimension / weight with packaging | cm 69 x 70 x 122, 68 kg |
