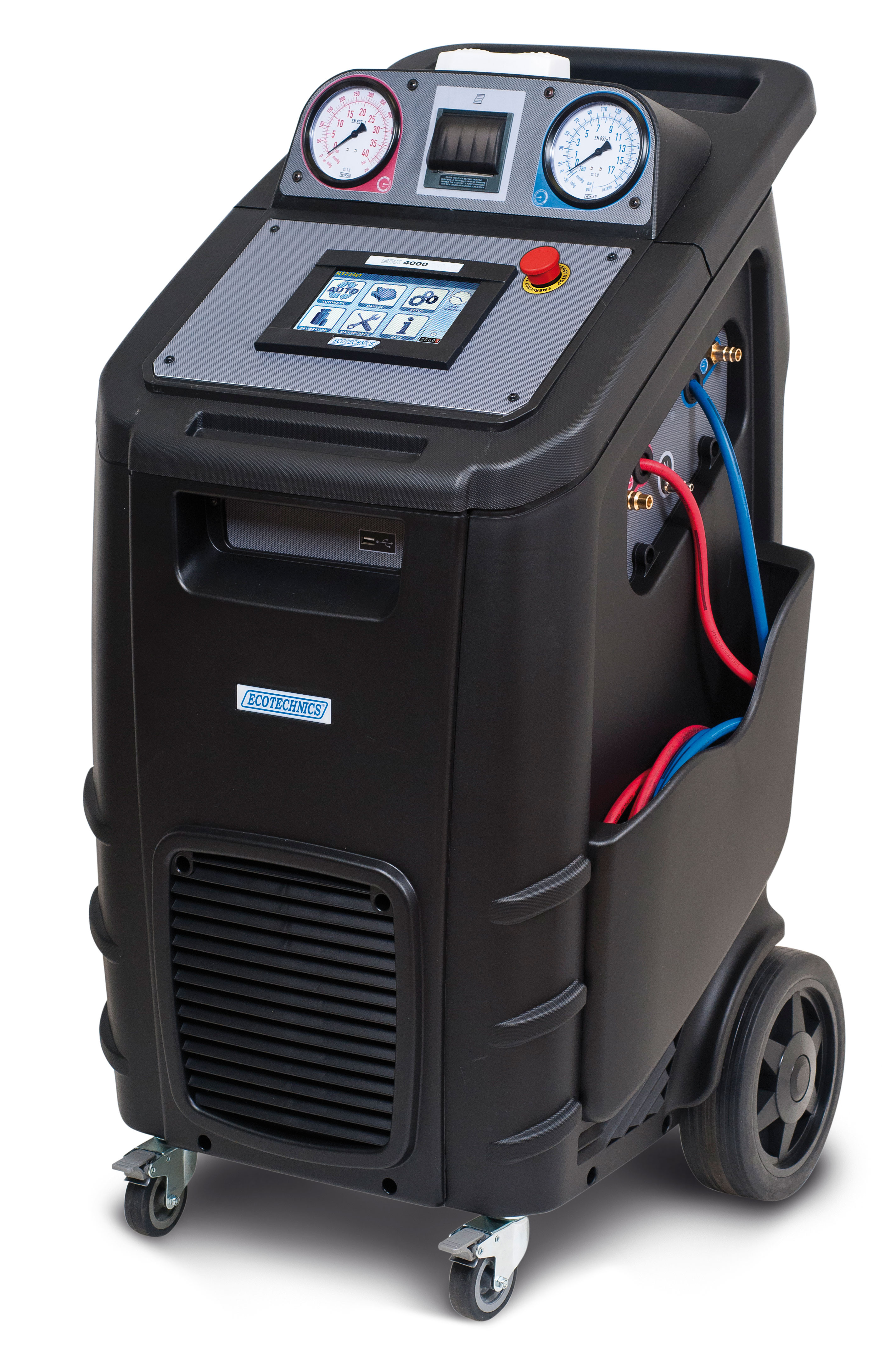

ECK 4000
     Chosen by the most trusted manufacturers

The top of the range for HFO1234yf refrigerant. The most modern functions are standard and offer maximum ease of use. The ECK 4000 is designed and approved according to VDA (German Association of the Automotive Industry) and EGEA (European Garage Equipment Association).

Fully automatic A/C station for recovery, recycling and charging for HFO1234yf

• Wide 7” touch screen display for an easy, fast and intuitive navigation.
• Built-in hybrid feature for the flushing of service hoses and internal circuits. Indispensable for the service on systems with an electric compressor.
• External refrigerant identifier (optional for ECK4000 HFO, standard and integrated for ECK4000)
• Automatic test of the A/C system under pressure with nitrogen or hydrogen/ nitrogen mixture
• Management of 2 oils and one tracer, both with refillable hermetic containers and with hermetic cartridges
• Automatic purging of non-condensable gases
• Complete database also including commercial and agricultural vehicles.
• Status light

OEM Approvals ECK 4000: Opel-Vauxhall




Type of refrigerant HFO1234yf
Display 7'' colour touchscreen
Service valves Automatic
Thermal printer Standard
Hermetic and refillable containers for oil and dye Standard 2 + 1
Hermetic disposable containers for oil and dye Option
Refillable standard containers for oil and dye not available
Hoses 3 meters
Data Base Car-Truck-Agri Standard
Refrigerant Configuration not available
Hybrid function / electrically driven compressors Standard
Pressure test forming gas / nitrogen Standard
Gas Identifier / Gas Analyser Standard, Identifier
Connectivity WIFI not available
Flushing Kit Option
Leak check in vacuum Standard
Non condensable gas purge Automatic
Voltage 220-240V 50/60 Hz
Vacuum pump 100 l/min, vacuum level 0,1 mbar
Sealed compressor 1/3 HP
Recovery speed 300 g/min in liquid phase
Tank Scale resolution 10 gr
Oil scale resolution 5 gr
Working temperature range 11/49 °C
Filter system 1 filter for humidity
Refrigerant tank 12 liters refillable
Bottle heater Standard
Dimension / weight cm 55 x 60 x 110, 90 kg
Dimension / weight with packaging cm 70 x 70 x 130, 100 kg
