Functionality, design, innovation

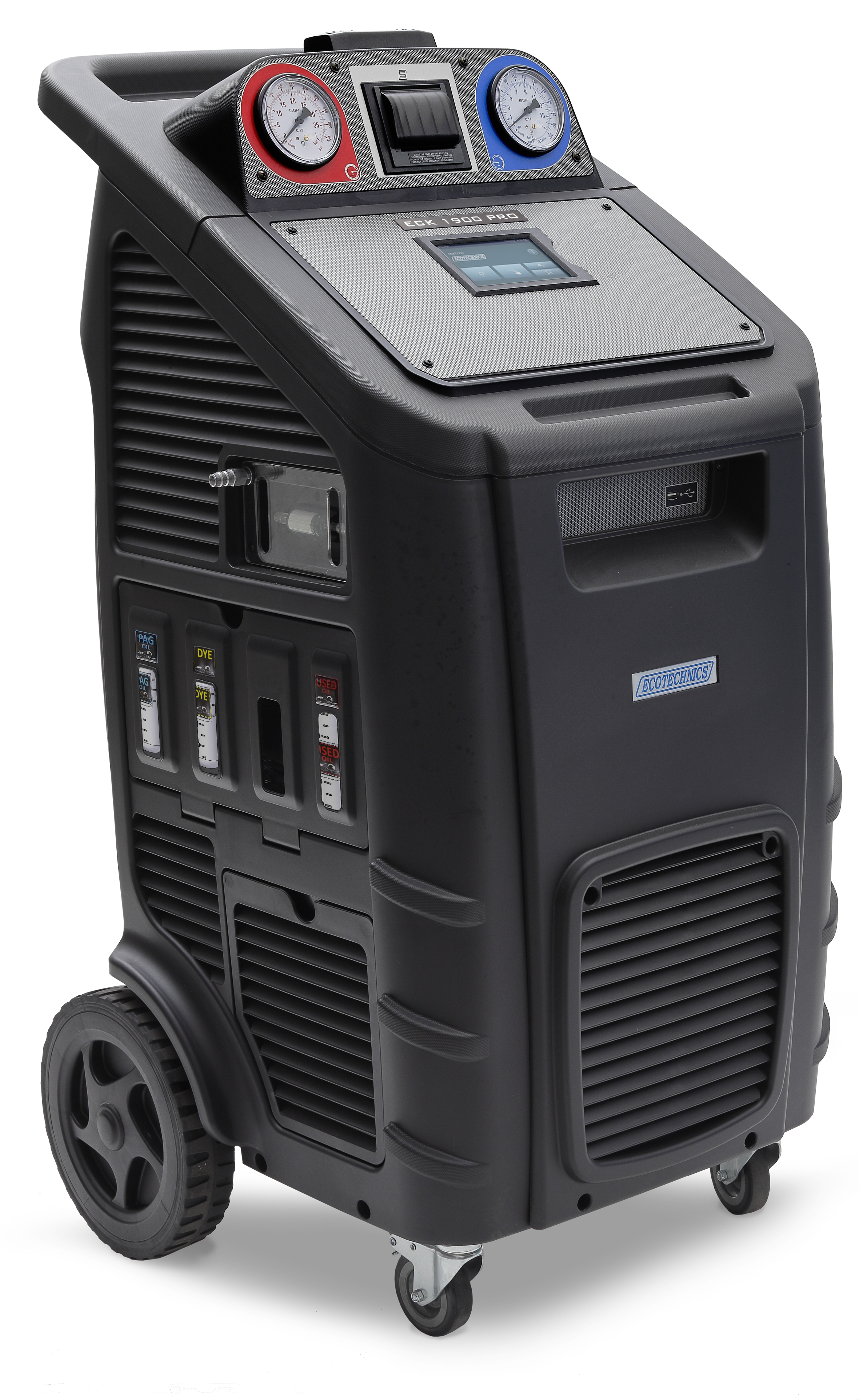

ECK 1900 PREMIUM is the model designed for different types of refrigerant. The innovative functions, simplicity and high-quality components characterise this station in its functional design. ECK 1900 PREMIUM is a flexible solution for the workshop.
Fully automatic A/C charging station for recovery, recycling and charging for R134a or HFO1234yf
- Configuration of the refrigerant during activation with the corresponding R134a or HFO kit
- Wide 5” touch screen display for an easy, fast and intuitive navigation
- Energy-saving with 12-volt solenoid valve technology
- Optional Hybrid kit for the flushing of the service hoses and internal circuits. Indispensable for the service on systems with an electric compressor.
- Automatic leakage control during the vacuum phase
- Optional refrigerant analyser for % detection of refrigerant components tested: HFO1234yf, R134a, R22, HC hydrocarbons and air.
- Oil management with both standard refillable containers and hermetic cartridges
- WIFI connection available on request
- Complete database also including commercial and agricultural vehicles

CONTAINERS MANAGEMENT

INTEGRATED HYBRID FUNCTION

REFRIGERANT CONFIGURATION
Standard






Optional



Technical specifications
| Type of refrigerant | HFO1234yf or R134a |
| Display | 5'' colour touchscreen |
| Service valves | Manual |
| Thermal printer | Standard |
| Hermetic and refillable containers for oil and dye | Not available |
| Hermetic disposable containers for oil and dye | 1 + 1 |
| Refillable standard containers for oil and dye | 2 |
| Hoses | 3 meters |
| Data Base Car-Truck-Agri | Standard |
| Refrigerant Configuration | Standard |
| Hybrid function / electrically driven compressors | Standard |
| Pressure test forming gas / nitrogen | Not available |
| Gas Identifier / Gas Analyser | Option, Analyser |
| Connectivity WIFI | Option |
| Flushing Kit | Option |
| Leak check in vacuum | Option |
| Non condensable gas purge | Manual |
| Voltage | 220-240V 50/60 Hz |
| Vacuum pump | 51 l/min, Vacuum 0,2 mbar |
| Sealed compressor | 1/3 HP |
| Recovery speed | 300 g/min in liquid phase |
| Tank Scale resolution | 10 gr |
| Oil scale resolution | 5 gr |
| Working temperature range | 11/49 °C |
| Filter system | 1 humidity filter |
| Refrigerant tank | 12 lt rechargeable |
| Bottle heater | Not available |
| Dimension / weight | cm 55 x 60 x 110, 80 kg |
| Dimension / weight with packaging | cm 76 x 70 x 125, 90 kg |
