The complete station for R134a and HFO1234yf

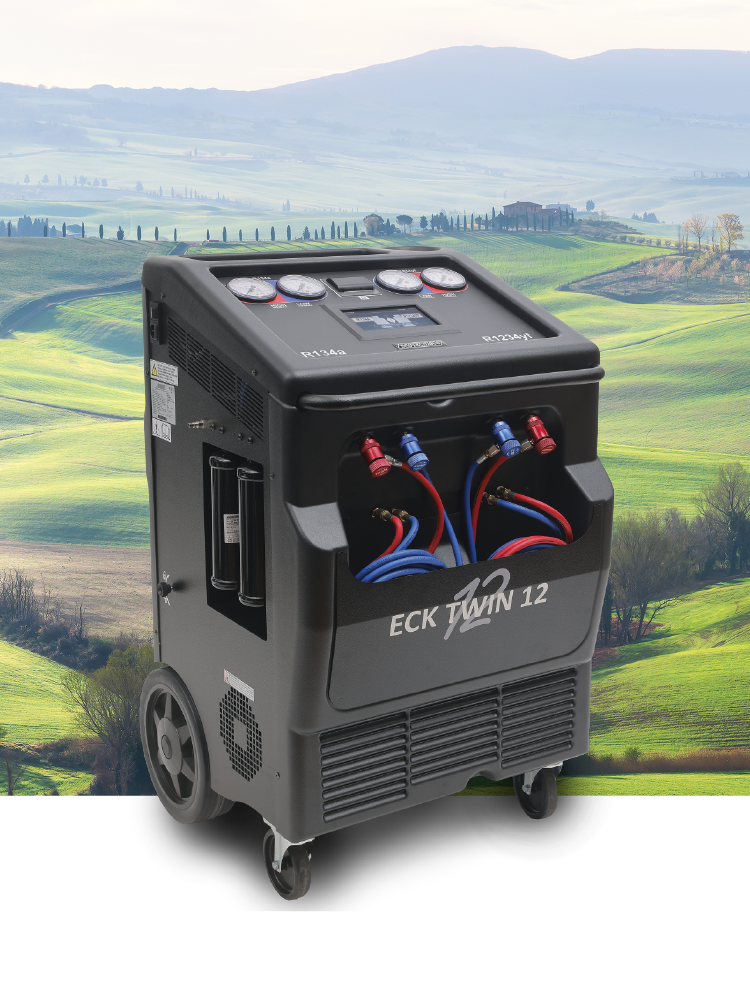

ECK TWIN 12 is the renovated expression of the functional and technological skills of the Ecotechnics brand. Two machines in one is the simple, fast and safe solution. ECK TWIN 12 is renewed by adopting some of the most successful modern technological standards.

Fully automatic A/C charging station for recovery, recycling and charging for R134a and HFO1234yf

  • Two independent circuits with specific components for each gas
  • New 7” touch screen display for an easy, fast and intuitive navigation
  • Energy-saving with 12-volt solenoid valve technology
  • Built-in hybrid function for the flushing of service hoses and internal circuits. Indispensable for the service on systems with an electric compressor.
  • Optional refrigerant analyser for % detection of refrigerant components tested: HFO1234yf, R134a, R22, HC hydrocarbons and air.
  • Automatic test of the A/C system under pressure with nitrogen or hydrogen/ nitrogen mixture
  • Management of 2 oils and 2 tracers, both with hermetic containers that can be filled and with hermetic cartridges
  • Automatic purging of non-condensable gases
  • WIFI connection as standard
  • Complete database also including commercial and agricultural vehicles
  • Innovative and practical cylinder locking system from the outside
  • 100V or 110V transformer available as an optional feature

OEM Approvals: PSA**, Renault*, Mitsubishi*, Honda*, Suzuki Italia*, Jaguar-Land Rover*, Toyota Deutschland*

*) ECK TWIN 12 is the evolution of ECK TWIN PRO
**) Approval obtained on ECK TWIN PRO


display 7”

Hermetic and refillable containers

Hermetic disposable containers

Pressure test forming gas / nitrogen

wi fi




Gas Analyser

flushing kit

Technical specifications

Type of refrigerant R134a and HFO1234yf
Display 7'' colour touchscreen
Service valves Automatic
Thermal printer Standard
Hermetic and refillable containers for oil and dye Standard 2 + 2
Hermetic disposable containers for oil and dye Standard 2 + 2
Refillable standard containers for oil and dye Not available
Hoses 2 pairs, 3 meters each
Data Base Car-Truck-Agri Standard
Refrigerant Configuration Not available
Hybrid function / electrically driven compressors Standard
Pressure test forming gas / nitrogen Standard
Gas Identifier / Gas Analyser Option, Analyser
Connectivity WIFI Standard
Flushing Kit Option
Leak check in vacuum Standard
Non condensable gas purge Automatic
Voltage 220-240V 50/60 Hz
Vacuum pump 100 l/min, vacuum level 0,1 mbar
Sealed compressor 2 x 1/3 HP
Recovery speed 300 g/min in liquid phase
Tank Scale resolution 10 gr
Oil scale resolution 5 gr
Working temperature range 11/49 °C
Filter system 2 filters for humidity
Refrigerant tank 2x12 liters refillable
Bottle heater Standard
Dimension / weight cm 67 x 62 x 107, 122 kg
Dimension / weight with packaging cm 91 x 72 x 126, 132 kg
