High-End per l’officina moderna

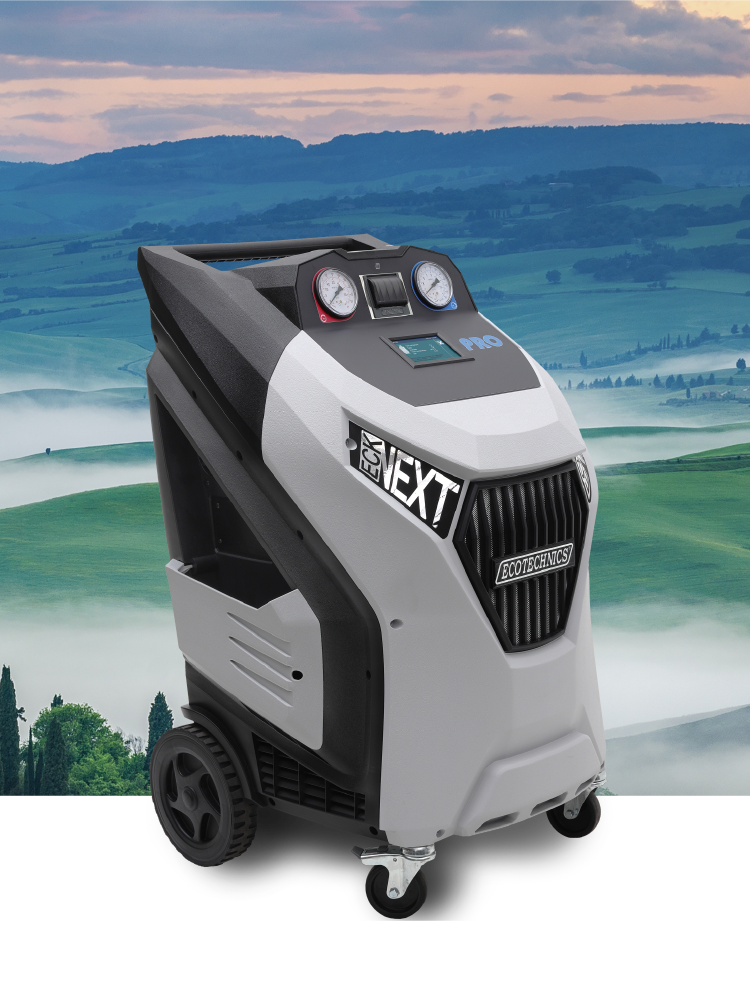

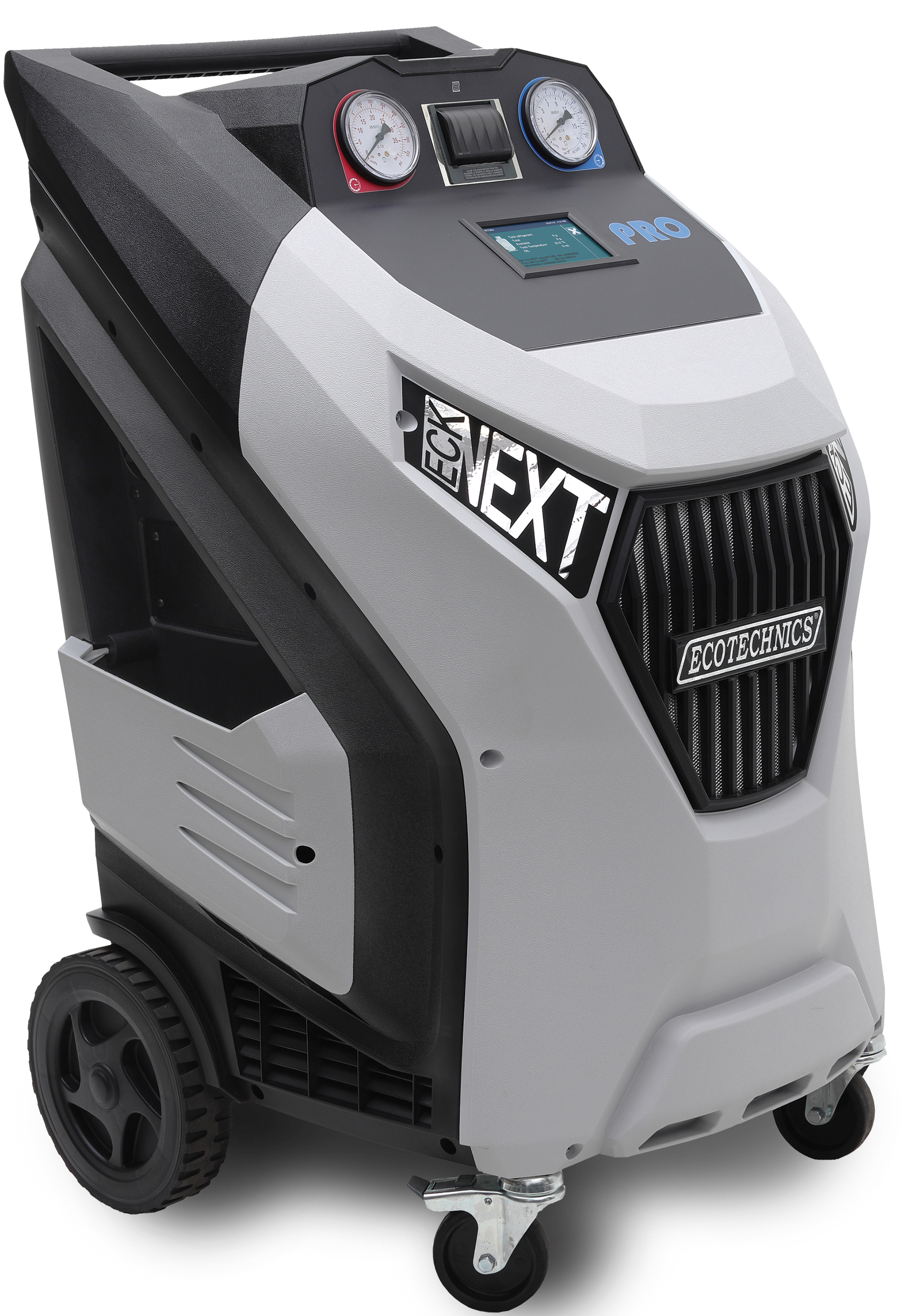

ECK NEXT PRO is designed for different types of refrigerant. ECK NEXT PRO enriches the equipment with an additional oil/tracer container and a cylinder heater. The Hybrid feature is standard. Additional optional features make this station a fast and flexible solution.
Fully automatic climate station for recovery, recycling and charging for R134a or HFO1234yf
- Refrigerant configuration during activation with the corresponding R134a or HFO kit
- Large 5” touch screen display for an easy, fast and intuitive navigation
- Energy-saving with 12-volt solenoid valve technology
- Standard Hybrid kit for flushing of service hoses and internal circuits. Indispensable for the service on systems with an electric compressor
- Automatic leakage control during the vacuum phase
- Optional refrigerant analyser for % detection of refrigerant components tested: HFO1234yf, R134a, R22, HC hydrocarbons and air.
- Oil and tracer management, both with standard refillable containers and hermetic cartridges
- 2 large side pockets to comfortably accommodate even longer hoses
- WIFI connection available on request
- Complete database including commercial and agricultural vehicles
- Automatic internal cylinder heater
7″ TOUCH SCREEN
BUILT-IN HYBRID FEATURE
REFRIGERANT ANALYSER
Standard
Optional
Technical specifications
Type of refrigerant | HFO1234yf or R134a |
Display | 5'' colour touchscreen |
Service valves | Manual |
Thermal printer | Standard |
Hermetic and refillable containers for oil and dye | Not available |
Hermetic disposable containers for oil and dye | Standard 1 + option 1 |
Refillable standard containers for oil and dye | Standard 2 |
Hoses | 3 meters |
Data Base Car-Truck-Agri | Standard |
Refrigerant Configuration | Standard |
Hybrid function / electrically driven compressors | Standard |
Pressure test forming gas / nitrogen | Not available |
Gas Identifier / Gas Analyser | Option, Analyser |
Connectivity WIFI | Option |
Flushing Kit | Option |
Leak check in vacuum | Standard |
Non condensable gas purge | Manual |
Voltage | 220-240V 50/60 Hz |
Vacuum pump | 51 l/min, vacuum level 0,2 mbar |
Sealed compressor | 1/3 HP |
Recovery speed | 300 g/min in liquid phase |
Tank Scale resolution | 10 gr |
Oil scale resolution | 5 gr |
Working temperature range | 11/49 °C |
Filter system | 1 filter for humidity |
Refrigerant tank | 12 liters refillable |
Bottle heater | Standard |
Dimension / weight | cm 67 x 68 x 108, 63 kg |
Dimension / weight with packaging | cm 76 x 70 x 125, 81 kg |
